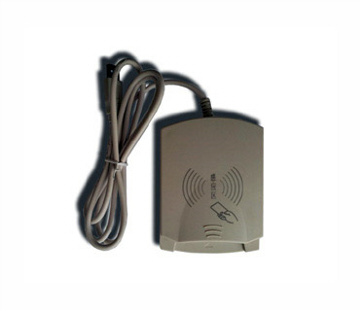

RW202xx 13.56M NFC Contactless Smart Card Reader(High Frequency)


Type NumberMain Difference
RW202AA
RS232+ISO14443A
RW202AB
RS485+ISO14443A
RW202AC
USB Virtual COM(CP2102)+ISO14443A
RW202AH
USB(HID)+ISO14443A
RW202CA
RS232 Dual Interface+ ISO14443A+ISO7816
RW202CB
RS485 Dual Interface+ ISO14443A+ISO7816
RW202CC
USB Virtual COM(CP2102) Dual Interface+ ISO14443A+ISO7816
RW202CH
USB(HID) Dual Interface+ ISO14443A+ISO7816
RW202EA
RS232 Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
RW202EB
RS485 Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
RW202EC
USB Virtual COM(CP2102) Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
RW202EH
USB(HID) Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/TYPE B/ISO15693/Filica/Mifare/ISO7816
  • The module has the function of detecting whether the M1 card is a cloned card (Only for UID,not for the block data)
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  • Dimension:120mm*83mm*32mm
  • Communication interface: RS232/RS485/USB
  • Embeded with watchdog
  • Souce code samples for Android,Java,Javascript,VC,VB,C++ Builder,DELPHI,Power Builder,C#,CVI,etc
  • PC DEMO for users
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:40~60mm(Testing base on standard S50)
  • Power Supply:DC5V
  • Current:Standard modules:5V/100mA
  • Temperature range:-10℃～+70℃
  • Demision:120mm*83mm*32mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
RW202AA
RS232+ISO14443A Mifare S50,S70,FM11RF08,FM1204,FM1208 and compatible cards
RW202AB
RS485+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208 and compatible cards
RW202ACUSB Virtual COM(CP2102)+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208 and compatible cards
RW202AH
USB(HID)+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208 and compatible cards
RW202CA
RS232 Dual Interface+ ISO14443A+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card ,SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202CB
RS485 Dual Interface+ ISO14443A+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card ,SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202CC
USB Virtual COM(CP2102) Dual Interface+ ISO14443A+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card ,SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202CH
USB(HID) Dual Interface+ ISO14443A+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card ,SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202EA
RS232 Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card SRI512.SRI4K,typeB T=CL CPU card, I Code2,Tagit,Felica(Read UID only),
NameCard of P.R.C(Read UID only),SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202EB
RS485 Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card SRI512.SRI4K,typeB T=CL CPU card, I Code2,Tagit,Felica(Read UID only),
NameCard of P.R.C(Read UID only),SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202EC
USB Virtual COM(CP2102) Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card SRI512.SRI4K,typeB T=CL CPU card, I Code2,Tagit,Felica(Read UID only),
NameCard of P.R.C(Read UID only),SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
RW202EH
USB(HID) Dual Interface+ ISO14443A+ISO14443B+ISO15693+ISO7816
Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card SRI512.SRI4K,typeB T=CL CPU card, I Code2,Tagit,Felica(Read UID only),
NameCard of P.R.C(Read UID only),SAM9600,SAM38400, ISO7816-4 CPU contact smart card and compatible cards
