Type NumberMain Difference
M104AxN
IIC
M104CxN
IIC

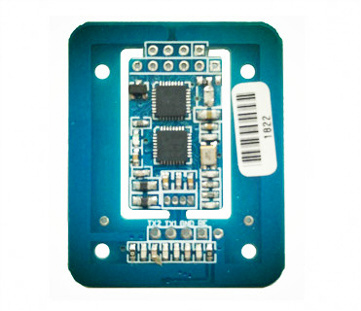

>>Features

  • This model is a version of the replacement of V41 Serials
  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Embeded NXP ARM Microprocessor
  • Compliant with the standard of ISO14443 TYPE A/Mifare/ISO7816
  • Support 2 pcs T=0 or T=1 PSAM/ESAM
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  •  Integrated with antenna
  • Dimension include antenna:43.5X35.5mm
  • Communication interface:IIC or UART
  • Embeded with watchdog
  • Souce code samples for C51,Android,Windows,Linux
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Optional antennas(Just user M104x Core module)

Type Number
Dimension
Operation Distance
T182
32.5X17.5mm
20~30mm
T186
Outside diameter:31mm
20~30mm
T101
65X59mm
50~70mm
T102
41X42mm
30~40mm
T105
128X142mm
80~100mm
T107
192X155mm
90~120mm
T120
63X35mm
30~40mm

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:40~60mm(Testing base on standard S50)
  • Power Supply:DC3.3V/DC5V
  • Current:Standard modules:3.3V/35mA(High Power Modules(model+"B"):3.3V/90mA)
  • Temperature range: -10℃~+70℃
  • Demision:43.5X35.5mm(Intergrated with antenna)
  • Pin to pin distance:2.54mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M104AN
DC3.3V, Low Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag and compatible cards
M104ABN
DC3.3V, High Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag and compatible cards
M104AV5N
DC5V, Low Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag and compatible cards
M104AV5BN
DC5V, High Power, Read and Write, IICMifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag and compatible cards

M104CN
DC3.3V, Low Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag,SAM9600,SAM38400 and compatible cards
M104CBN
DC3.3V, High Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag,SAM9600,SAM38400 and compatible cards
M104CV5N
DC5V, Low Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag,SAM9600,SAM38400 and compatible cards
M104CV5BN
DC5V, High Power, Read and Write, IIC
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,Ntag,SAM9600,SAM38400 and compatible cards

>>Download
