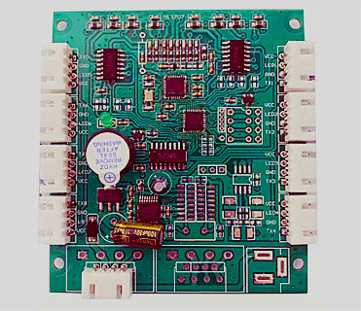

Type NumberMain Difference
M137AX-8
ISO14443A
M137HX-8
ISO15693
M137EX-8
ISO14443A+ISO14443B+ISO15693

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/TYPE B/Mifare/ISO15693
  • Up to 8 antennas can be supported at the same time, and user cost can be greatly reduced under certain circumstances.
  • There are 8 LED control signals inside
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  • Dimension:79X71mm
  • Communication interface: TTL232/RS232/RS485/USB(HID)
  • Embeded with watchdog
  • Souce code samples for Android,Java,Javascript,VC,VB,C++ Builder,DELPHI,Power Builder,C#,CVI,etc
  • PC DEMO for users
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Optional antennas

Type NumberDimensionOperation Distance
T12063x35mm30-40mm

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:20~60mm(According to the tag)
  • Communication interface: UART/RS232/RS485/USB(HID)
  • Power Supply:DC5V
  • Current:Standard modules:5V/150mA
  • Temperature range:-10℃~+70℃
  • Demision:79X71mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M137AA-8
RS232+ISO14443A
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag  and compatible cards
M137AB-8
RS485+ISO14443A
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag  and compatible cards
M137AH-8
USB(HID)+ISO14443A
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag  and compatible cards
M137AT-8
TTL232+ISO14443A
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag  and compatible cards



M137HA-8
RS232+ISO15693
I code,HF tag it and compatible cards
M137HB-8
RS485+ISO15693
I code,HF tag it and compatible cards
M137HH-8
USB(HID)+ISO15693
I code,HF tag it and compatible cards
M137HT-8
TTL232+ISO15693
I code,HF tag it and compatible cards



M137EA-8
RS232+ISO14443A+ISO14443B+ISO15693
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag
I code,HF tag it,SRI
512,SRI4K and compatible cards
M137EB-8
RS485+ISO14443A+ISO14443B+ISO15693
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag
I code,HF tag it,SRI
512,SRI4K and compatible cards
M137EH-8
USB(HID)+ISO14443A+ISO14443B+ISO15693
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag
I code,HF tag it,SRI
512,SRI4K and compatible cards
M137ET-8
TTL232+ISO14443A+ISO14443B+ISO15693
Mifare One S50,S70, FM11RF08,ISO14443A CPU card, Ntag
I code,HF tag it,SRI
512,SRI4K and compatible cards
