| Type Number | Main Difference |
| M105CAx | RS232+14443A module |
| M105CTx | TTL232+14443A module |
| M105EAx | RS232+14443A/B/ISO15693 UART module |
| M105ETx | TTL232 +14443A/B/ISO15693 UART module |
| M105CWx | 14443A Wiegand module |
>>Features
- The type numbers have changed from July 2018 for easy understand.
- Actually M105x serials products are T105 + different function modules,so the functions are same with the inserted modules
- Frequency: 13.56MHz
- Embeded NXP transceive IC as RF base sation
- Compliant with the standards of ISO14443 TYPE A/TYPE B/ISO15693/Filica/Mifare/ISO7816
- The module has the function of detecting whether the M1 card is a cloned card (Only for UID,not for the block data)
- Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.

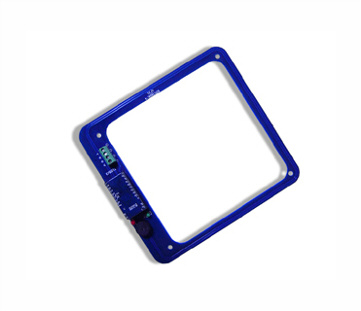

- Dimension:142X128X15mm
- Communication interface: TTL232/RS232/Wiegand
- Embeded with watchdog
- Souce code samples for C51,Android,Windows,Linux
- Software can be customized according to the customer requirements
- Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc
>>Optional antennas
| Type Number | Dimension | Operation Distance |
>>Electrical Characteristics
- Frequency: 13.56MHz
- Operation distance:80~100mm(Testing base on standard S50)
- Power Supply:DC5V
- Current:Standard modules:5V/100mA
- Temperature range:：-10℃～+70℃
- Demision:1142X128X15mm
>>Main Difference
| Type Number | Main Difference | Support Tags |
| M105CAx | RS232+M102GPCNV5 | Mifare S50,S70,FM11RF08,Ultralight,Ntag,FM1208, FM1204,PSAM9600,PSAM38400 and compatible cards |
| M105CBx | RS485+M102GPCNV5 | Mifare S50,S70,FM11RF08,Ultralight,Ntag,FM1208, FM1204,PSAM9600,PSAM38400 and compatible cards |
| M105EAx | RS232+M102EEx | Mifare One S50,S70, FM11RF08, Ultralight,Ntag203, Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card, I Code2, Tagit, Felica(read UID only),SAM9600, SAM38400 and compatible cards |
| M105EBx | RS485+M102EEx | Mifare One S50,S70, FM11RF08, Ultralight,Ntag203, Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card, I Code2, Tagit, Felica(read UID only),SAM9600, SAM38400 and compatible cards |
| M105CWx | M102GW | Mifare S50,S70,FM11RF08 and compatible cards |
>>Download
- Detail functions, please reference the user manual of inserted module
