Type NumberMain Difference
CustomerNo-X
Most of the multi-antenna modules are customized according to the customer requirement, so the model is defined as CustomerNo-X

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/Mifare

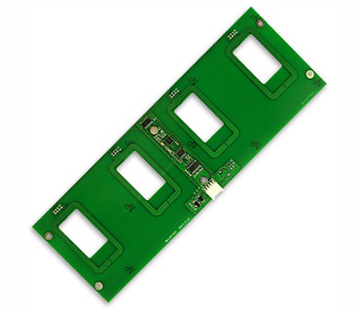

  • Up to 4 antennas can be supported at the same time, and user cost can be greatly reduced under certain circumstances.
  • Integrated with antenna
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  • Dimension:According to the customer requirement
  • Communication interface: UART/RS232/RS485
  • Embeded with watchdog
  • Souce code samples for Android,Java,Javascript,VC,VB,C++ Builder,DELPHI,Power Builder,C#,CVI,etc
  • PC DEMO for users
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:20~40mm(According to the tag)
  • Communication interface: UART/RS232/RS485
  • Power Supply:DC5V
  • Current:Standard modules:5V/100mA
  • Temperature range:-10℃~+70℃
  • Demision: According to the customer requirement

>>Main Difference

Type NumberMain DifferenceSupport Tags
CustomerNo-X
Most of the multi-antenna modules are customized according to the customer requirement, so the model is defined as CustomerNo-X
Mifare One S50,S70, FM11RF08 and compatible cards
