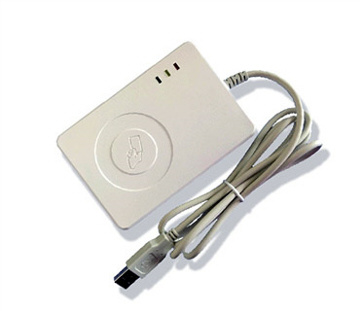

Type NumberMain Difference
RW210AA
RS232+ISO14443A
RW210AB
RS485+ISO14443A
RW210AC
USB Virtual COM(CP2102)+ISO14443A
RW210ACN
USB Virtual COM(CH340)+ISO14443A
RW210AH
USB(HID)+ISO14443A


RW210CA
RS232+ISO14443A+ISO7816
RW210CB
RS485+ISO14443A+ISO7816
RW210CC
USB Virtual COM(CP2102)+ISO14443A+ISO7816
RW210CCN
USB Virtual COM(CH340)+ISO14443A+ISO7816
RW210CH
USB(HID)+ISO14443A+ISO7816


RW210HA
RS232+ISO15693
RW210HB
RS485+ISO15693
RW210HC
USB Virtual COM(CP2102)+ISO15693
RW210HCN
USB Virtual COM(CH340)+ISO15693
RW210HH
USB(HID)+ISO15693


RW210EA
RS232+
ISO14443A+ISO14443B+ISO15693+ISO7816

RW210EB
RS485+
ISO14443A+ISO14443B+ISO15693+ISO7816

RW210EC
USB Virtual COM(CP2102)+
ISO14443A+ISO14443B+ISO15693+ISO7816

RW210ECN
USB Virtual COM(CH340)+
ISO14443A+ISO14443B+ISO15693+ISO7816

RW210EH
USB(HID)+
ISO14443A+ISO14443B+ISO15693+ISO7816

>>Features

  • Frequency: 13.56MHz
  • Embeded ARM Microprocessor
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/TYPE B/ISO15693/Filica/Mifare/ISO7816
  • The module has the function of detecting whether the M1 card is a cloned card (Only for UID,not for the block data)
  • Support 2 pcs PSAM connectors or 2 pcs DIP8 connectors or 2 pcs SOP8 ESAM IC
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  • Dimension:125mm*85mm*20mm
  • Communication interface: RS232/RS485/USB
  • Embeded with watchdog
  • Souce code samples for Android,Java,Javascript,VC,VB,C++ Builder,DELPHI,Power Builder,C#,CVI,etc
  • PC DEMO for users
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:30~90mm(According to the tag)
  • Power Supply:DC5V
  • Current:Standard modules:5V/100mA
  • Temperature range:-10℃~+70℃
  • Demision:125mm*85mm*20mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
RW210AA
RS232+ISO14443AMifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216 and compatible cards
RW210AB
RS485+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216 and compatible cards
RW210AC
USB Virtual COM(CP2102)+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216 and compatible cards
RW210ACN
USB Virtual COM(CH340)+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216 and compatible cards
RW210AHUSB(HID)+ISO14443A
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216 and compatible cards



RW210CA
RS232+ISO14443A+ISO7816
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600,SAM38400 and compatible cards
RW210CB
RS485+ISO14443A+ISO7816
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600,SAM38400 and compatible cards
RW210CC
USB Virtual COM(CP2102)+ ISO14443A+ISO7816
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600,SAM38400 and compatible cards
RW210CCN
USB Virtual COM(CH340)+
ISO14443A
+ISO7816
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600,SAM38400 and compatible cards
RW210CH
USB(HID)+ISO14443A+ISO7816
Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600,SAM38400 and compatible cards



RW210HA
RS232+ISO15693
ISO15693:ICode2,Tagit and compatible cards
RW210HA
RS485+ISO15693
ISO15693:ICode2,Tagit and compatible cards
RW210HC
USB Virtual COM(CP2102)+ ISO15693
ISO15693:ICode2,Tagit and compatible cards
RW210HCN
USB Virtual COM(CH340)+ISO15693
ISO15693:ICode2,Tagit and compatible cards
RW210HH
USB(HID)+ISO15693
ISO15693:ICode2,Tagit and compatible cards



RW210EA
RS232+
ISO14443A+ISO14443B+ISO15693+ISO7816

Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card,I Code2,Tagit,
Felica( read UID only),
,SAM9600,SAM38400 and compatible cards

RW210EB
RS485+
ISO14443A+ISO14443B+ISO15693+ISO7816

Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card,I Code2,Tagit,
Felica( read UID only),
,SAM9600,SAM38400 and compatible cards

RW210EC
USB Virtual COM(CP2102)+
ISO14443A+ISO14443B+ISO15693+ISO7816

Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card,I Code2,Tagit,
Felica( read UID only),
,SAM9600,SAM38400 and compatible cards

RW210ECN
USB Virtual COM(CH340)+
ISO14443A+ISO14443B+ISO15693+ISO7816

Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card,I Code2,Tagit,
Felica( read UID only),
,SAM9600,SAM38400 and compatible cards

RW210EH
USB(HID)+
ISO14443A+ISO14443B+ISO15693+ISO7816

Mifare One S50,S70, FM11RF08, Ultralight,Ntag203,
Ntag 213,215,216,FM1208,Desfire, typeA T=CL CPU card, SRI512.SRI4K,typeB T=CL CPU card,I Code2,Tagit,
Felica( read UID only),
,SAM9600,SAM38400 and compatible cards
