Type NumberMain Difference

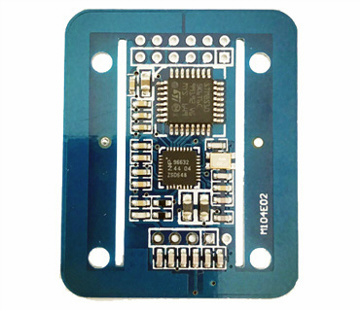

M104EPCx
UART, ISO14443A/B/ISO15693/ISO7816
M104HPCx
UART,ISO15693

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/Mifare/ISO14443B/ISO15693/ISO7816/Felica
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  •  Integrated with antenna
  • Dimension include antenna:43.5X35.5mm
  • Communication interface:UART
  • Embeded with watchdog
  • Souce code samples for C51,Android,Windows,Linux
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Optional antennas(None)

Type Number
Dimension
Operation Distance

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:40~60mm(Testing base on standard S50)
  • Power Supply:DC3.3V/DC5V
  • Current:Standard modules:3.3V/50mA(High Power Modules:5V/90mA)
  • Temperature range: -10℃~+70℃
  • Demision:43.5X35.5mm(Intergrated with antenna)
  • Pin to pin distance:2.54mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M104HPCD-9600
DC3.3~5V, Baudrate9600 ISO15693
I CODE SL2,Tag it and compatible cards
M104HPCD-19200
DC3.3~5V, Baudrate19200, ISO15693
I CODE SL2,Tag it and compatible cards
M104EPC
DC3.3~5V, Baudrate19200, ISO14443A/B/ISO15693/ISO7816
Mifare S50,S70,FM11RF08, Ultralight,Ntag203, 213, 215, 216, FM1208,Desfire,T=CL TYPE A CPU cards,PSAM9600, PSAM38400, SRI512I,SRIX4K,T=CL TYPE B CPU cards,
I CODE 2,HF Tag it and compatible cards
