Type NumberMain Difference
M106BWN-26
Wiegand 26, DC5V
M106BWN-34
Wiegand 34, DC5V
M106BWNL-26
Wiegand 26, DC3.3V
M106BWNL-34
Wiegand 34, DC3.3V

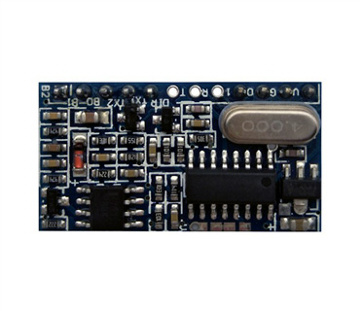

>>Features

  • Frequency:125KHz
  • M106BWNx embedded with 125KHz RF base station
  • Search card automatically,when having tag in the antenna field,the Tag UID No will be send out through Wiegand interface
  • Dimension:32.5X17.5mm(DIP26)
  • Support EM/TK4001 or EM/TK4100 and compatible cards
  • Embeded with watchdog
  • Interface:Wiegand 26 or wiegand 34
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Antennas

Type NumberDimensionOperation Distance
T106B
60X80mm
60~80mm
T106C
60X60mm
60~80mm
T106D
45X32mm
40~60mm
T106H
44X20mm
30~40mm
T106I
Outside Diameter:23.5mm,
 Inside Diameter:20mm
20~30mm
T106J
29X22mm
20~30mm
T106K
Outside Diameter: 10mm, Inside Diameter
4.5mm, Thickness: 3mm
20~30mm

>>Electrical Characteristics

  • Frequency: 125KHz
  • Operation distance :20~100mm(base on the antenna dimension)
  • Interface: wiegand 26/34
  • PowerSupply:DC5V or DC3.3V
  • Operation current:3.3V/29mA
  • Temperature range:-10℃~+70℃
  • Dimension:32.5X17.5mm(DIP26)
  • Pin to pin distance:2.54mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M106BWN-26
Wiegand 26, DC5V
EM4001,EM4100,TKS28,etc
M106BWN-34
Wiegand 34, DC5V
EM4001,EM4100,TKS28,etc
M106BWNL-26
Wiegand 26, DC3.3V
EM4001,EM4100,TKS28,etc
M106BWNL-34
Wiegand 34, DC3.3V
EM4001,EM4100,TKS28,etc
