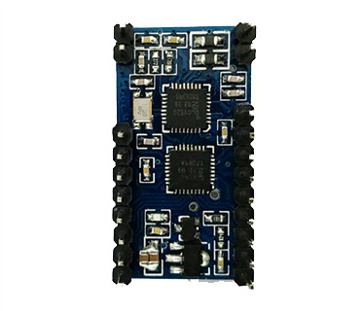

Type NumberMain Difference
M102Gx
IIC or UART(9bits)
M102GPCx
UART(8bits)
M102GPCNx
UART(8bits)
M102GWx
Wiegand26/34

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standard of ISO14443 TYPE A/Mifare
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards
  • Integrated with antenna
  • Dimension:32.5X17.5mm
  • Communication interface:IIC/UART
  • Embeded with watchdog
  • Souce code samples for C51,Android,Windows,Linux
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Optional antennas

Type Number
Dimension
Operation Distance
T182
32.5X17.5mm
20~30mm
T186
Outside diameter:31mm
20~30mm
T101
65X59mm
50~70mm
T102
41X42mm
30~40mm
T105
128X142mm
80~100mm
T107
192X155mm
90~120mm
T120
63X35mm
30~40mm

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:40~60mm(Testing base on standard S50)
  • Power Supply:DC3.3V/DC5V
  • Current:Standard modules:3.3V/35mA(High Power Modules:3.3V/90mA)
  • Temperature range:-10℃~+70℃
  • Demision:32.5X17.5mm
  • Pin to pin distance:2.54mm(DIP26)

>>Main Difference

Type NumberMain DifferenceSupport Tags
M102GV3
3.3V UART(9bits) or IIC
Mifare S50,S70,FM11RF08 and compatible cards
M102GV55V UART(9bits) or IIC
Mifare S50,S70,FM11RF08 and compatible cards
M102GPCV3
3.3V UART(8bits)
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,PSAM9600,PSAM38400 and compatible cards
M102GPCV5
5V UART(8bits)
Mifare S50,S70,FM11RF08,FM1208,FM1204,
,PSAM9600,PSAM38400 and compatible cards
M102GW-26
Wiegand26 DC5V
Mifare S50,S70,FM11RF08 and compatible cards
M102GW-34
Wiegand34 DC5V
Mifare S50,S70,FM11RF08 and compatible cards
M102GPCNV3B
3.3V High Power M102GPC's update product
Mifare S50,S70,FM11RF08,Ultralight,Ntag,FM1208, FM1204,PSAM9600,PSAM38400 and compatible cards
M102GPCNV5B
5V High Power M102GPC's update product
Mifare S50,S70,FM11RF08,Ultralight,Ntag,FM1208, FM1204,PSAM9600,PSAM38400 and compatible cards
