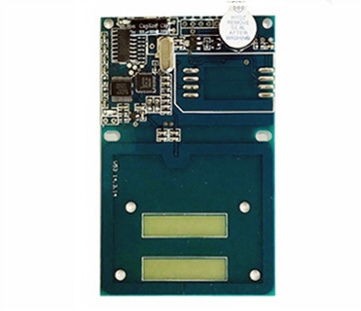

M209Cx Serial NFC Contactless Smart Card Board(High Frequency)


Type NumberMain Difference
M209CAx
RS232
M209CTx
TTL232
M209CIx
IIC
M209CHx
USB(HID)

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/Mifare/ISO7816
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  •  Integrated with antenna
  • Dimension include antenna:87X55X15mm
  • Communication interface:UART/RS232/I2C/USB(HID)
  • Souce code samples for C51,Android,Windows,Linux
  • Embeded with watchdog
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Optional antennas(None)

Type Number
Dimension
Operation Distance

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:40~60mm(Testing base on standard S50)
  • Power Supply:DC5V
  • Communication interface:RS232/UART/I2C/USB(HID)
  • Current:Standard modules:5V/54mA,High Power Modules:5V/100mA
  • Temperature range:-10℃～+70℃
  • Demision:87X55X15mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M209CA
RS232
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card and compatible cards
M209CT
UART
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card and compatible cards
M209CI
IIC
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card and compatible cards
M209CH
USB(HID)
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card and compatible cards
M209CA-1SAM
RS232+1 pc PSAM base
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card PSAM9600,PSAM38400 and compatible cards
M209CT-1SAM
UART+1 pc PSAM base
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card PSAM9600,PSAM38400 and compatible cards
M209CI-1SAM
IIC+1 pc PSAM base
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card PSAM9600,PSAM38400 and compatible cards
M209CH-1SAM
USB(HID)+1 pc PSAM base
Mifare S50,S70,FM11RF08, FM1208,Desfire,
T=CL TYPE A CPU card PSAM9600,PSAM38400 and compatible cards
